Product Overview: Stainless steel pipe end cap is a sealing pipe fitting at the end of piping systems, used to block pipe ports and cut off fluid circulation, realizing end sealing and protection of pipelines. Product Specification: Material:304/304L/316/316L/321/310S/2205,etc Nominal Size:DN15-DN1000 Wall Thicness:SCH 5S/10S/40S/80S/160,etc Connection Mode: Butt-Weld, Socket-Weld, Threaded. Standard:ASME B16.9,GB/T 12459,JIS B2311,DIN 2615,EN10253 Surface Finish: Sand Blasting/Brushing/Mirror Polish/Pickling&Passivation. Customization: Custom non-standard sizes,special materials ,surface finishes.

Product Overview: Stainless steel eccentric reducer is a special reducing pipe fitting in piping systems, with parallel eccentric distribution of center lines of pipe diameters at both ends. It is mainly used for smooth transition of pipe diameter, avoiding gas retention in pipelines and eliminating hidden dangers of air blockage, widely applicable to liquid transportation and easy gas accumulation pipeline projects. Product Specification: Material:304/304L/316/316L/321/310S/2205,etc Nominal Size:DN15-DN1000 Wall Thicness:SCH 5S/10S/40S/80S/160,etc Connection Mode: Butt-Weld, Socket-Weld, Threaded. Standard:ASME B16.9,GB/T 12459,JIS B2311,DIN 2615,EN10253 Surface Finish: Sand Blasting/Brushing/Mirror Polish/Pickling&Passivation. Customization: Custom non-standard sizes,special materials ,surface finishes.

Product Overview: Stainless steel concentric reducer is a key pipe fitting for realizing concentric reducing connection of pipe diameters in piping systems. It has different pipe diameters at both ends with coincident center lines, used for smoothly transitioning pipe diameter and adjusting fluid flow, effectively reducing fluid resistance and eddy current at pipe reducing positions. Product Specification: Material:304/304L/316/316L/321/310S/2205,etc Nominal Size:DN15-DN1000 Wall Thicness:SCH 5S/10S/40S/80S/160,etc Connection Mode: Butt-Weld, Socket-Weld, Threaded. Standard:ASME B16.9,GB/T 12459,JIS B2311,DIN 2615,EN10253 Surface Finish: Sand Blasting/Brushing/Mirror Polish/Pickling&Passivation. Customization: Custom non-standard sizes,special materials ,surface finishes.

Product Overview: Stainless steel equal tee is a core shunting and merging pipe fitting in piping systems, used for T-shaped docking of three pipes with the same diameter to realize shunting, converging and diverting of pipeline fluid.   Product Specification: Material:304/304L/316/316L/310S/2205,etc Nominal Size:DN15-DN1200 Wall Thicness:SCH 5S/10S/40S/80S/160,etc Connection Mode: Butt-Weld, Socket-Weld, Threaded. Standard:ASME B16.9,GB/T 12459,JIS B2311,DIN 2615 Surface Finish: Sand Blasting/Brushing/Mirror Polish/Pickling&Passivation. Customization: Custom non-standard sizes,special materials ,surface finishes.

Product Overview: Stainless steel reducing tee is a core pipe fitting used for shunting, merging and reducing connection in piping systems, realizing three-way docking of pipes with different diameters. Product Specification: Material:304/304L/316/316L/310S/2205,etc Nominal Size:DN15-DN1200 Bend Radius:Long Radius,R=1.5D  Short Radius,R=1.0D Wall Thicness:SCH 5S/10S/40S/80S/160,etc Connection Mode: Butt-Weld, Socket-Weld, Threaded. Standard:ASME B16.9,GB/T 12459,JIS B2311,DIN 2615 Surface Finish: Sand Blasting/Brushing/Mirror Polish/Pickling&Passivation. Customization: Custom non-standard sizes,special materials ,surface finishes.

Product Overview: Industrial-grade stainless steel 90° elbow, designed for right-angle direction changes in piping systems. Fabricated from premium stainless steel via precision stamping/push-forming processes. Smooth, burr-free ends ensure high welding/fitting accuracy. Product Specification: Material:304/304L/316/316L/310S/2205,etc Nominal Size:DN15-DN1200 Bend Radius:Long Radius,R=1.5D  Short Radius,R=1.0D Wall Thicness:SCH 5S/10S/40S/80S/160,etc Connection Mode: Butt-Weld, Socket-Weld, Threaded. Standard:ASME B16.9,GB/T 12459,JIS B2311,DIN 2615 Surface Finish: Sand Blasting/Brushing/Mirror Polish/Pickling&Passivation. Customization: Custom non-standard sizes,special materials ,surface finishes.

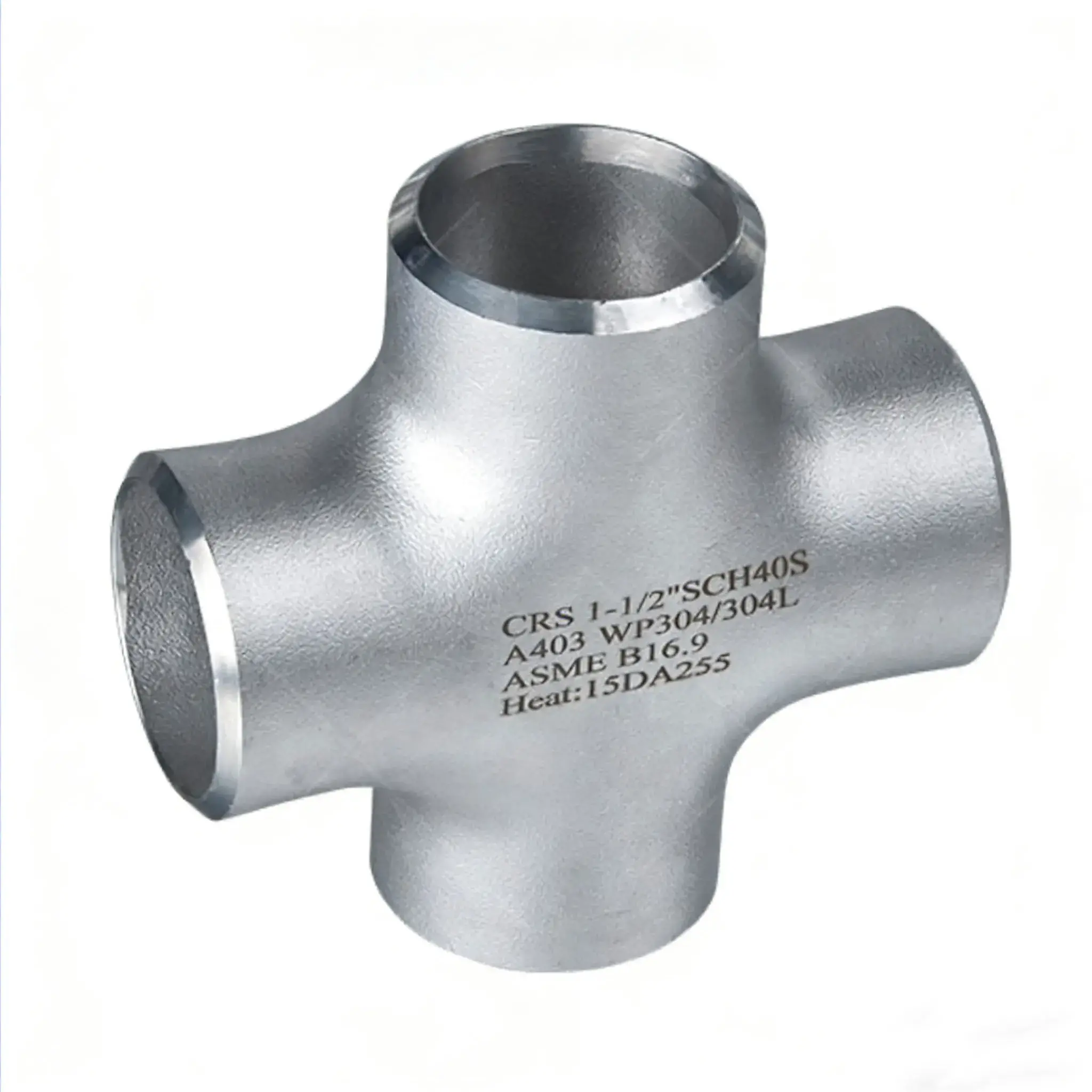

Equal cross is a core four-way connecting pipe fitting in stainless steel pipeline systems, featuring a standard cross-shaped symmetrical structure with four connecting ports of the same diameter. It is mainly used for four-way fluid distribution, confluence or direction change in pipeline systems, realizing precise docking of four pipes of the same specification in the same plane. Made of high-quality stainless steel and produced in accordance with international general pipe fitting standards, this product has excellent corrosion resistance, structural strength and sealing performance. It is widely suitable for various fluid transmission pipeline systems and is a key component for pipeline layout in industrial, civil, food, pharmaceutical and other fields.

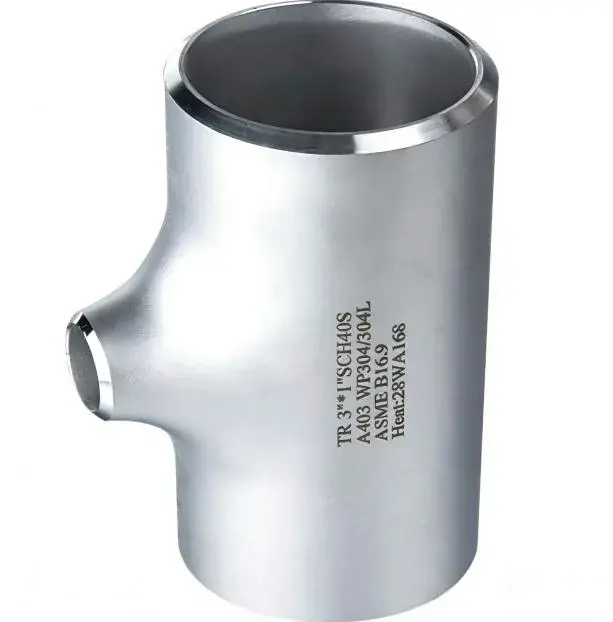

Our stainless steel reducing tee is a crucial butt-weld pipe fitting designed for three-way pipe connection, specially used to connect main pipes and branch pipes of different diameters, realizing fluid diversion and confluence in piping systems. It is forged from high-grade austenitic stainless steel, produced in strict accordance with ASME B16.9 manufacturing standards and ASTM A403 material specifications, with smooth inner wall, uniform stress distribution, and stable performance. The reducing design avoids fluid turbulence and pressure loss, ensuring smooth fluid flow, and is widely used in high-pressure, corrosive industrial pipeline scenarios, with firm welding connection and good sealing performance.   Product Type: Butt-Weld Reducing Tee (Equal Branch/Reducing Branch) Material: ASTM A403 WP304, WP304L (Customizable: 316/316L, 321, 310S, 904L) Executive Standard: ASME B16.9, ASTM A403 Nominal Diameter: Main Pipe 1/2″-48″ (DN15-DN1200), Branch Pipe Reduced accordingly Wall Thickness: SCH5S, SCH10S, SCH40S, SCH80S, SCH160S Surface Treatment: Pickling & Passivation Connection Type: Butt-Welded Heat No.: Unique Marking for Full Material Traceability Working Pressure: 1.6-16MPa (Customizable according to working conditions)

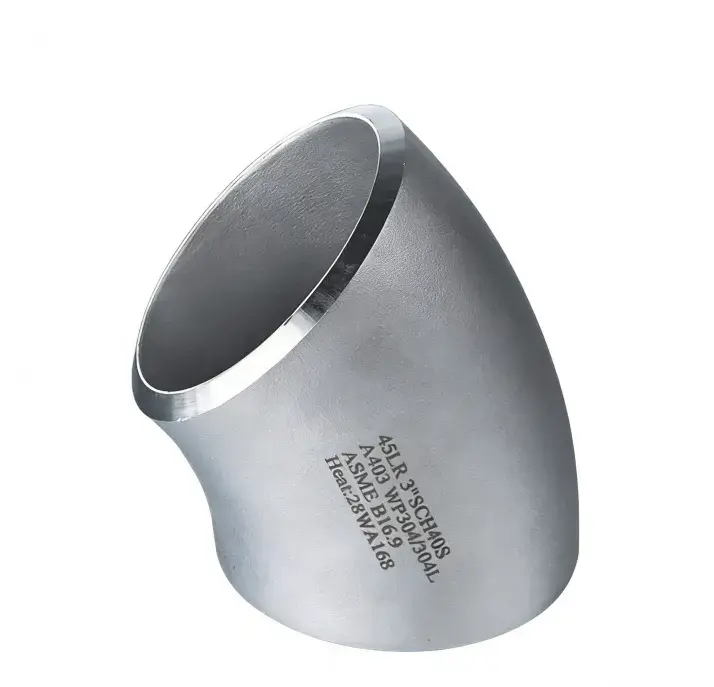

Our 45° long radius stainless steel butt-weld elbow is a key pipe fitting used to change the fluid flow direction by 45° in piping systems. It is fabricated from high-quality austenitic stainless steel in strict accordance with ASME B16.9 manufacturing standards and ASTM A403 material specifications, ensuring stable performance and long service life. The long radius (LR) design effectively reduces fluid turbulence and pressure loss, making it widely applied in various high-pressure, corrosion-prone industrial pipeline scenarios, with seamless welding and perfect fit during installation.   Product Type: 45° Long Radius (LR) Butt-Weld Elbow Material: ASTM A403 WP304, WP304L (Customizable: 316/316L, 321, 310S) Executive Standard: ASME B16.9, ASTM A403 Nominal Diameter: 1/2″ – 48″ (DN15 – DN1200) Wall Thickness: SCH5S, SCH10S, SCH40S, SCH80S, SCH160S Surface Treatment: Pickling & Passivation Connection Type: Butt-Welded Heat No.: Unique Marking for Material Traceability
